FEATURES

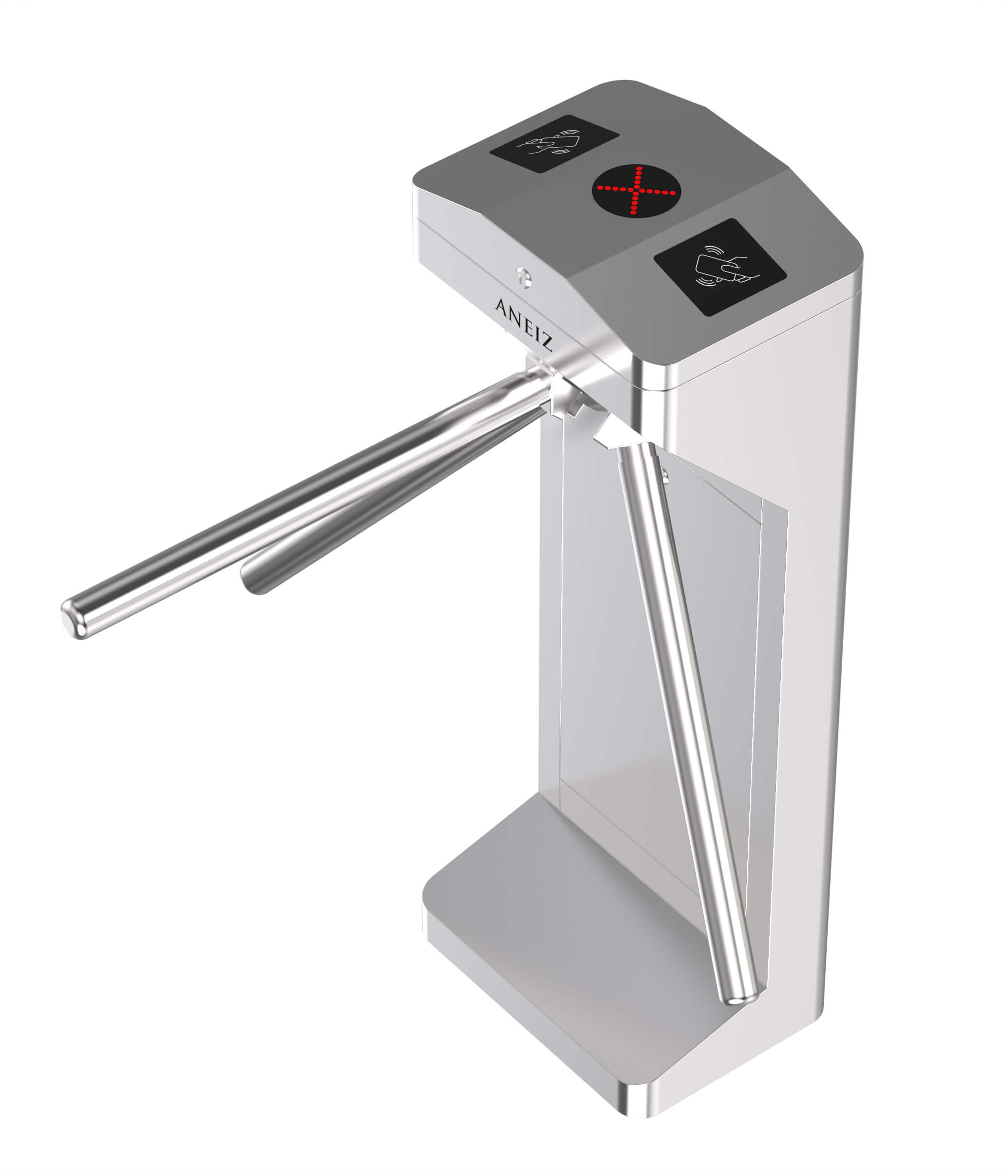

The T50 tripod turnstile is compact and simple design, with LED traffic light on the top and swiping window at the front and rear. Small in size, easily install at tiny space. The equipment is made of 304 stainless steel, resistant to abrasion and corrosion, making it highly resilient to outdoor use. T50 has standard relay signal to be easily integrated with any access control systems, such as IC/ID card, QR/bar code, fingerprint device… It perfectly fit install at office building, subway, stadium, hotel, park and gym.
- Compatible with any access control systems.
- 304 Stainless steel material, durable, high quality, for long lasting use.
- Reset automatically: the gate arm will lock if not passing at preset time (5 seconds), the time can be adjusted by software.
- Rapid throughput, 35 to 40 people per minute.
- Passing direction: single directional / bi-directional, both the two directions can be switched or set as free mode.
- LED indicator on the top displays the status of passing.
- Suitable for indoor and outdoor installation.
In case of emergency, when power goes off the arm drop down automatically, both directions are free.
SPECIFICS
| Material | 304 Grade Stainless Steel |
| Dimension | 360(L) X 260(W) X 980(H)mm |
| Arm Length | 500mm |
| Passage Width | 550mm standard lane |
| Throughput | 35 to 40 people per minute |
| Response Time | ≤0.3S |
| Net Weight | 35Kg/pcs |
| Directional Mode | Uni-directional or bio-directional |
| Emergency Function | Arm release automatically for Emergency access |
| Power Supply | AC220V/110V, 50/60Hz |
| Power Voltage | 24V DC |
| Power Consumption | 90-100W |
| MCBF | 5 Million |
| Operating Temperature | -20 °C – 75 °C |
| Operating Environment | Indoor or outdoor use |
| Relative Humidity | ≤ 90% |
| LED Indicators | Red cross means gate open, green arrow means gate closed |
| Warranty | 18 Months |

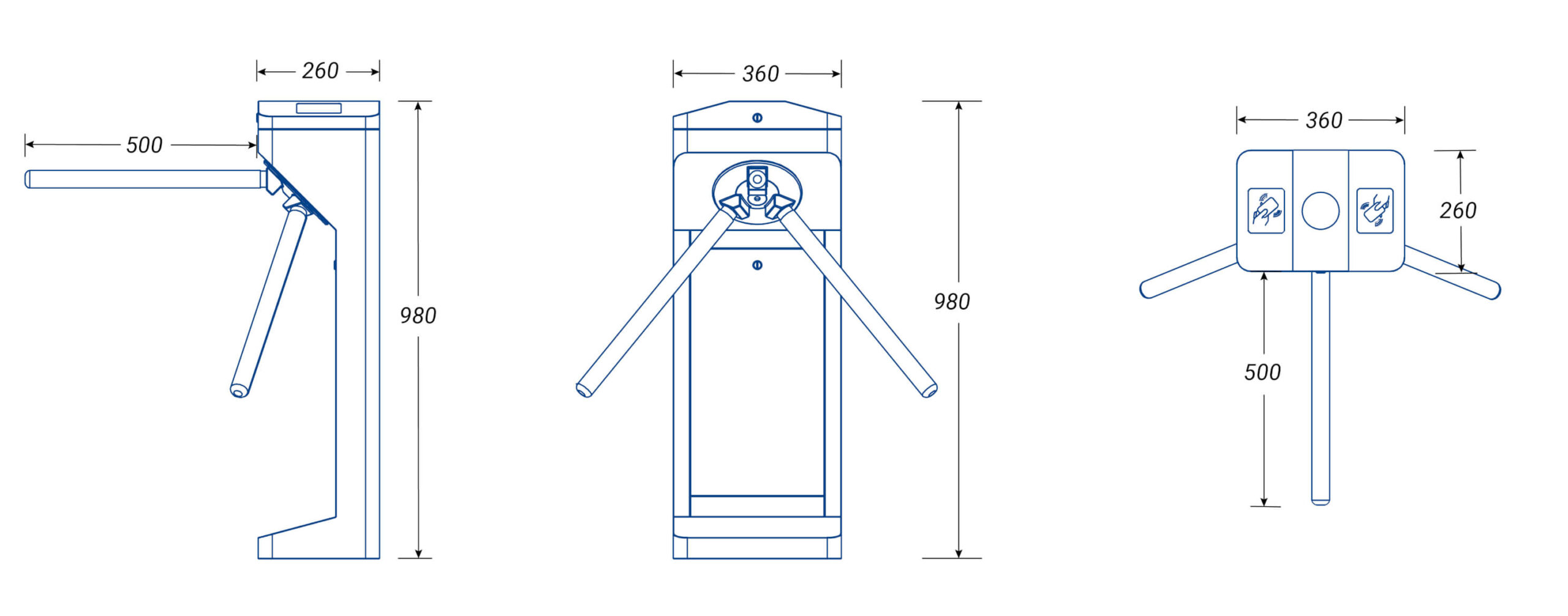

DIMENSIONS

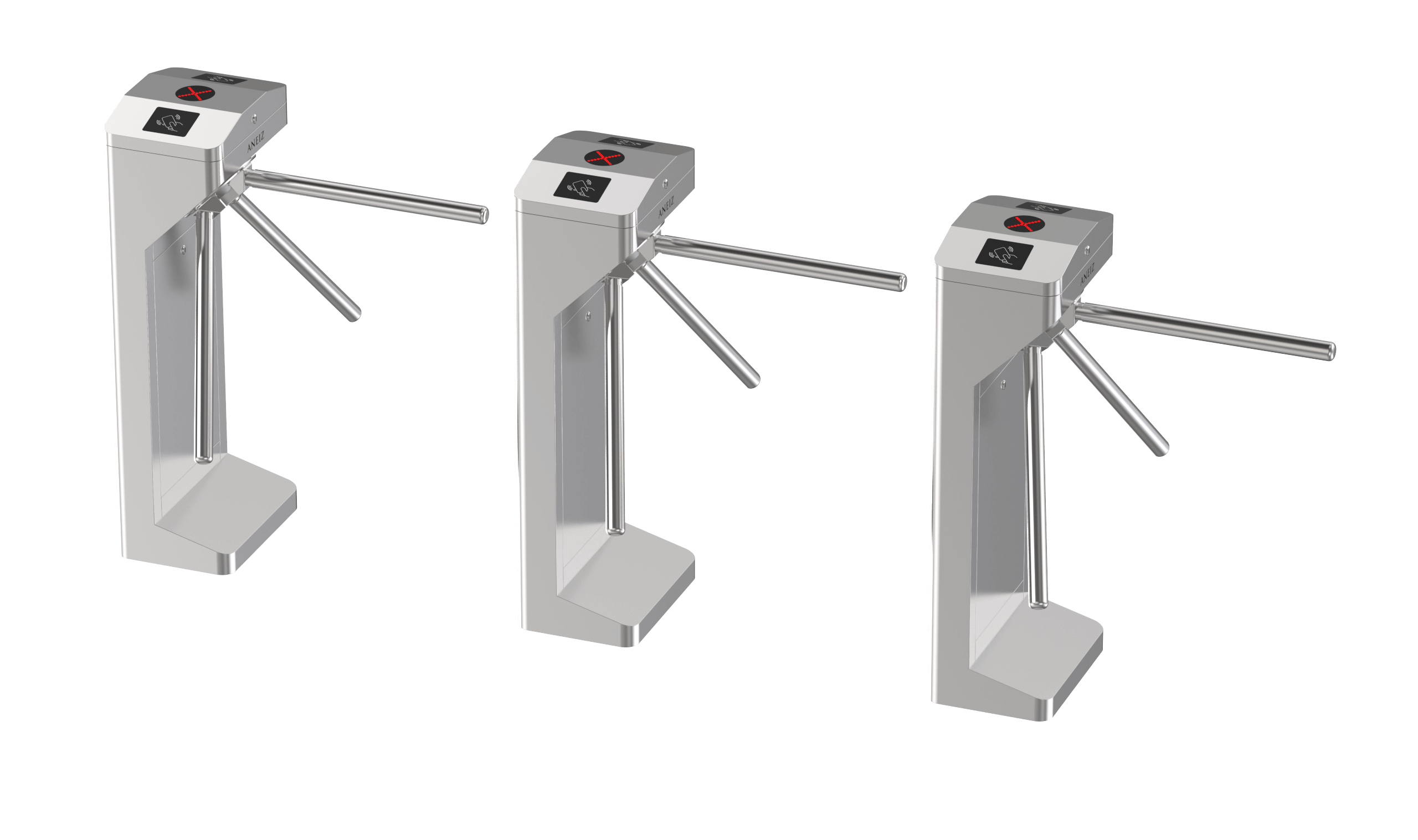

LANES
DOWNLOAD
