FEATURES

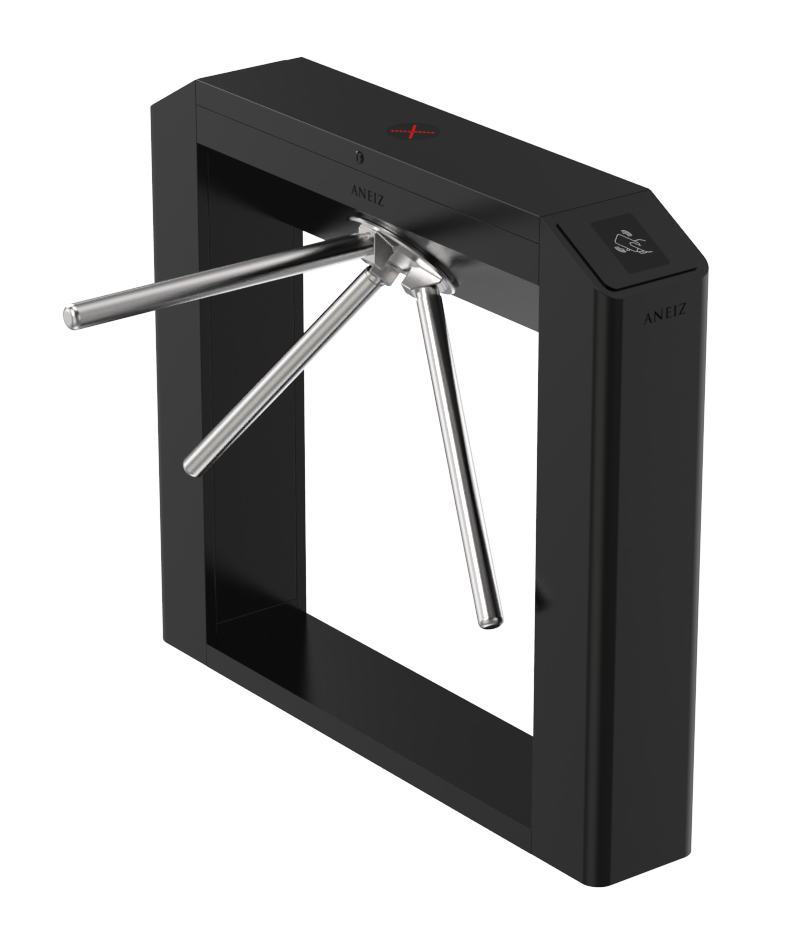

The T30-B tripod turnstile is compact and simple design, with swiping-card window at the front and back. The simple framework makes it more cost-effective. The equipment is made of steel+powder coate, suitable to use indoor or outdoor. T30-B has standard relay signal to be easily integrated with any access control systems, such as IC/ID card, QR/bar code, fingerprint device… It perfectly fit install at office building, subway, stadium, hotel, park and gym.
- Compatible with any access control systems.
- Steel+powder coated material, durable, high quality, for long lasting use.
- Reset automatically: the gate arm will lock if not passing at preset time (5 seconds), the time can be adjusted by software.
- Rapid throughput, 35 to 40 people per minute.
- Passing direction: single directional / bi-directional, both the two directions can be switched or set as free mode.
- LED indicator on the top displays the status of passing.
- Suitable for indoor and outdoor installation.
In case of emergency, when power goes off the arm drop down automatically, both directions are free.
SPECIFICS
| Material | Steel+powder coated |
| Dimension | 1110(L) X 200(W) X 980(H)mm |
| Arm Length | 500mm |
| Passage Width | 550mm standard lane |
| Throughput | 35 to 40 people per minute |
| Response Time | ≤0.3S |
| Net Weight | 45Kg/pcs |
| Directional Mode | Uni-directional or bio-directional |
| Emergency Function | Arm release automatically for emergency access |
| Power Supply | AC220V/110V, 50/60Hz |
| Power Voltage | 24V DC |
| Power Consumption | 20W |
| MCBF | 15 Million |
| Operating Temperature | -20 °C – 75 °C |
| Operating Environment | Indoor or outdoor use |
| Relative Humidity | ≤ 95% |
| LED Indicators | Red cross means gate open, green arrow means gate closed |
| Warranty | 36 Months |
DIMENSIONS

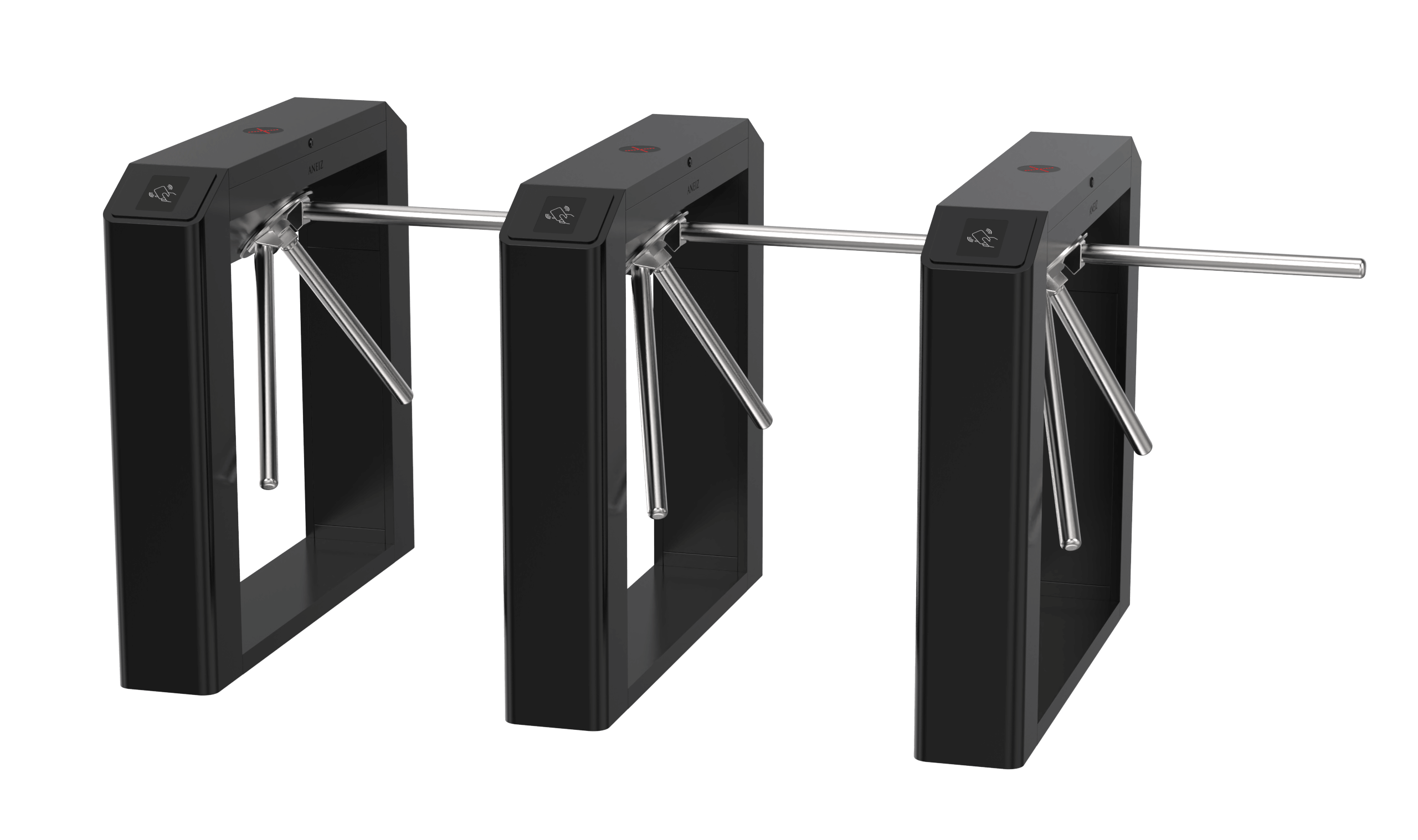

LANES
