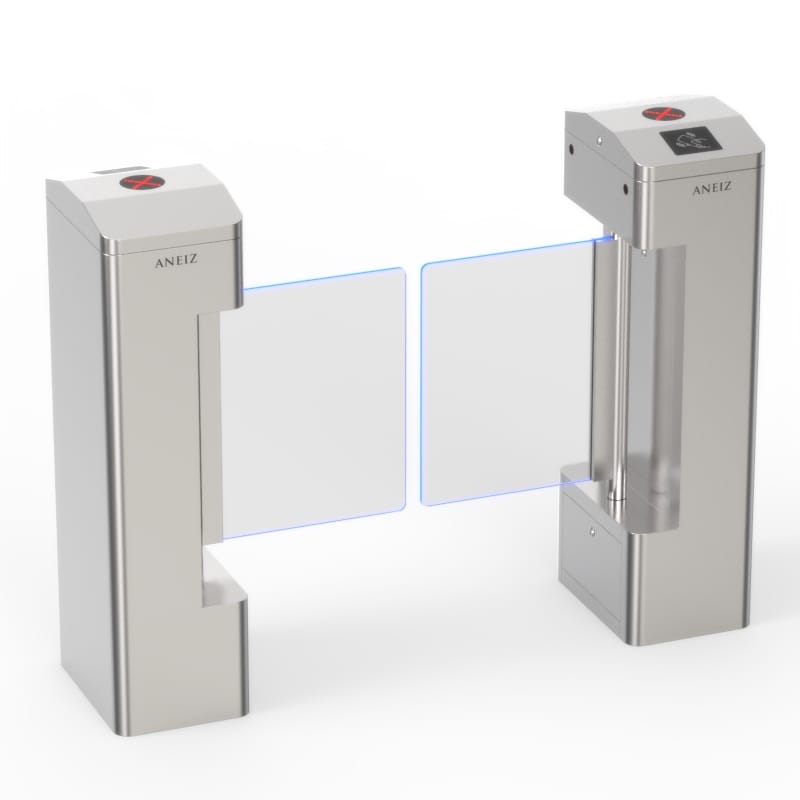

The S30 swing turnstile is with 360(L)x260(W) small size to install at compact places to control people access. The passing lane supports up to 1200mm.
The S30 features designed with standard relay signal, which can integrate easily to any kind of access control and fire systems through I/O (dry contact). In case of emergency, when power goes off both directions are free. Passing direction: uni-directional / bio-directional.
- MULTIPLE OPERATING MODES: IC/ID card, key fob, QR/bar code, face / fingerprint / finger vein biometric recognition, push button, ESD, wireless remote control, insert coins / card / wristband, digit counter…
WIDE OPENING: compared to tripod turnstile, swing turnstile offers wider opening passageway 600mm-1200mm to cater for bigger size pedestrian, wheelchair, luggage and big parcel to pass through easily.
EMERGENCY AND FIRE SAFETY: swing arms will automatically open during power failure. Swing turnstile also can be triggered to permanently open during emergency to facilitate fast evacuation. This is complying with fire safety requirements.
ANTI-TRAILING FUNCTION: Passengers are prohibited to pass until card is swiped, if someone wants to break in without swiping the RFID card, the turnstile will lock and alarm.
FLEXIBLE SECURITY: the turnstile designed with consolidated and more durable mechanism, will not break even someone collide it, anti-collision and anti-kick function.
AUTO CLOSE TIMER: swing arms will close automatically if there is no pedestrian passing or passenger delay to entry.
ALARM DETECTION: IR sensors detect unauthorized or abnormal access. Alarm buzzer function will be triggered when the user is passing thru without authorization, tail gaiting, illegal intrusion or incorrect direction.
| Material | 304 Grade Stainless Steel |
| Arm Material | Plexiglas-transparency |
| Cabinet Dimension | 360(L) X 260(W) X 980(H)mm |
| Arm Length | 550mm |
| Passage Width | 600mm standard lane, 1200mm handicapped lane |
| Throughput | 35 to 40 people per minute |
| Response Time | ≤0.3S |
| Net Weight | 40kg/pcs single core |
| Directional Mode | Uni-directional or bio-directional |
| Emergency Function | Arm release automatically for Emergency access |
| IR Sensor | 3 pairs (standard) |
| Power Supply | AC220V/110V, 50/60Hz |
| Power Voltage | 24V DC |
| Power Consumption | 90-100W |
| MCBF | 12 Million |
| Operating Temperature | -20 °C – 75 °C |
| Operating Environment | Indoor or outdoor (need with shelter) |
| Relative Humidity | ≤ 95% |
| LED Indicators | Red cross means gate closed, green arrow means gate opened |
| Glass LED Strips (Optional) | Blue, green and red three colors |
| Warranty | 36 Months |
