FEATURES

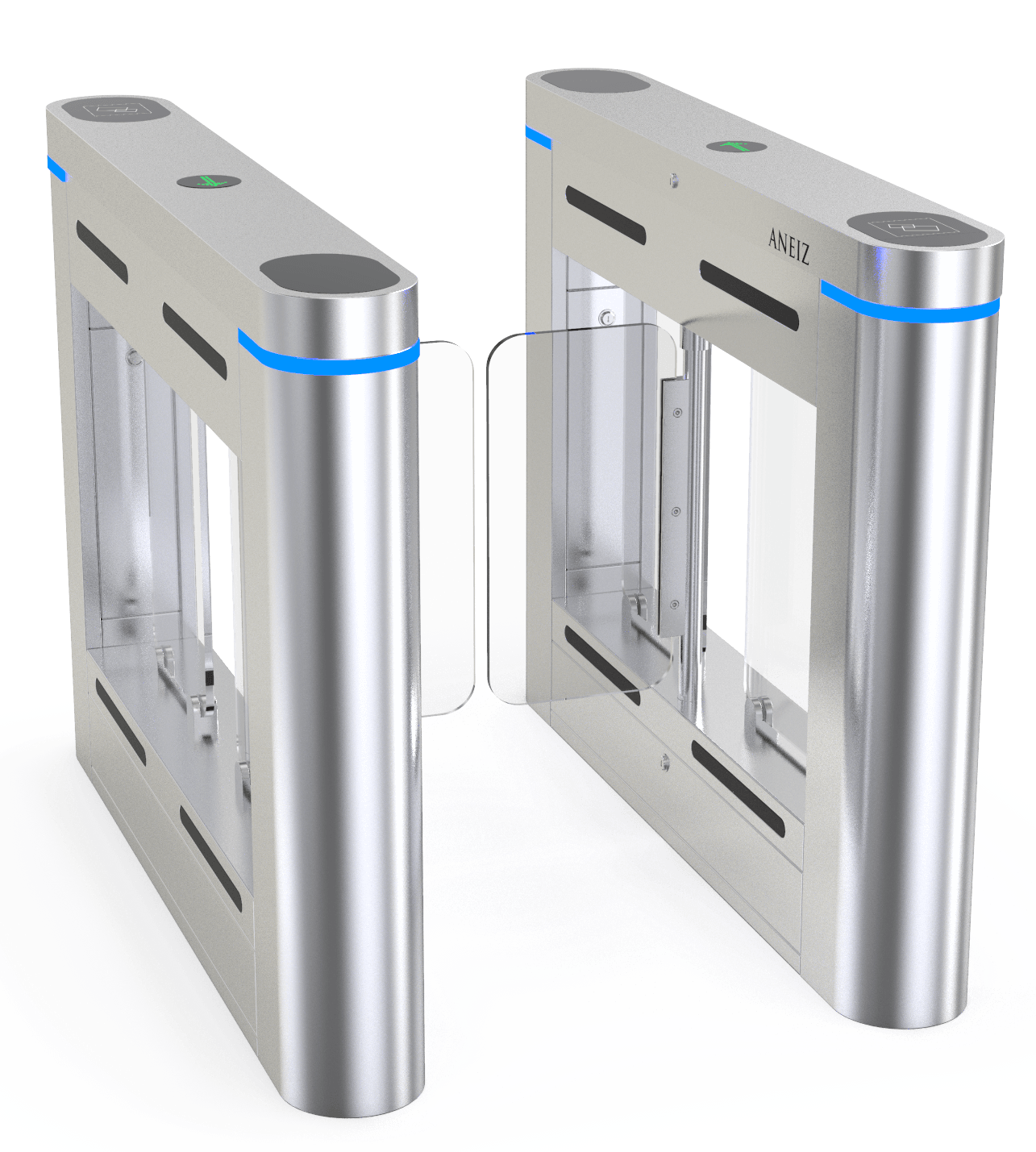

The S10 swing turnstile has ultra-high cost performance and provides high-quality services. Can easily integrate the magnetic card, bar code card, Mifare card, and other RFID card readers on the equipment. It is a high-tech product mainly for intelligent management of personnel access control. Our swing turnstile is very popular in many regions and can be seen in many cities around the world.
- LED indicator. Infrared sensor to prevent pinch pedestrians.
- Alarm function, in case of illegal intrusion and reverse intrusion.
- Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
- The whole system runs smoothly, long-life performance, high operation dependability and fast response.
- Can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device)..
- Brushed stainless steel body, seamless and elegant access points that blend into most indoor environments.
- In case of emergency, the optical turnstile arm will open automatically to allow free passage..
SPECIFICS
| Material | 304 Grade Stainless Steel |
| Arm Material | Plexiglas-transparency |
| Dimension | 1200(L) X 185(W) X 980(H)mm |
| Arm Length | 500mm |
| Passage Width | 600mm standard lane; 800mm handicapped lane |
| Throughput | 35 to 40 people per minute |
| Response Time | ≤0.3S |
| Net Weight | 60kg/pcs (single core), 70kg/pcs (double core) |
| Directional Mode | Uni-directional or bio-directional |
| Emergency Function | Arm release automatically for Emergency access |
| Power Supply | AC220V/110V, 50/60Hz |
| Power Voltage | 24V DC |
| Power Consumption | 40W |
| MCBF | 5 Million |
| Operating Temperature | -20 °C – 75 °C |
| Operating Environment | Indoor or outdoor use |
| Relative Humidity | ≤ 95% |
| LED Indicators | Two LED indicators on top: green → entry. red × no entry |
| Warranty | 18 Months |

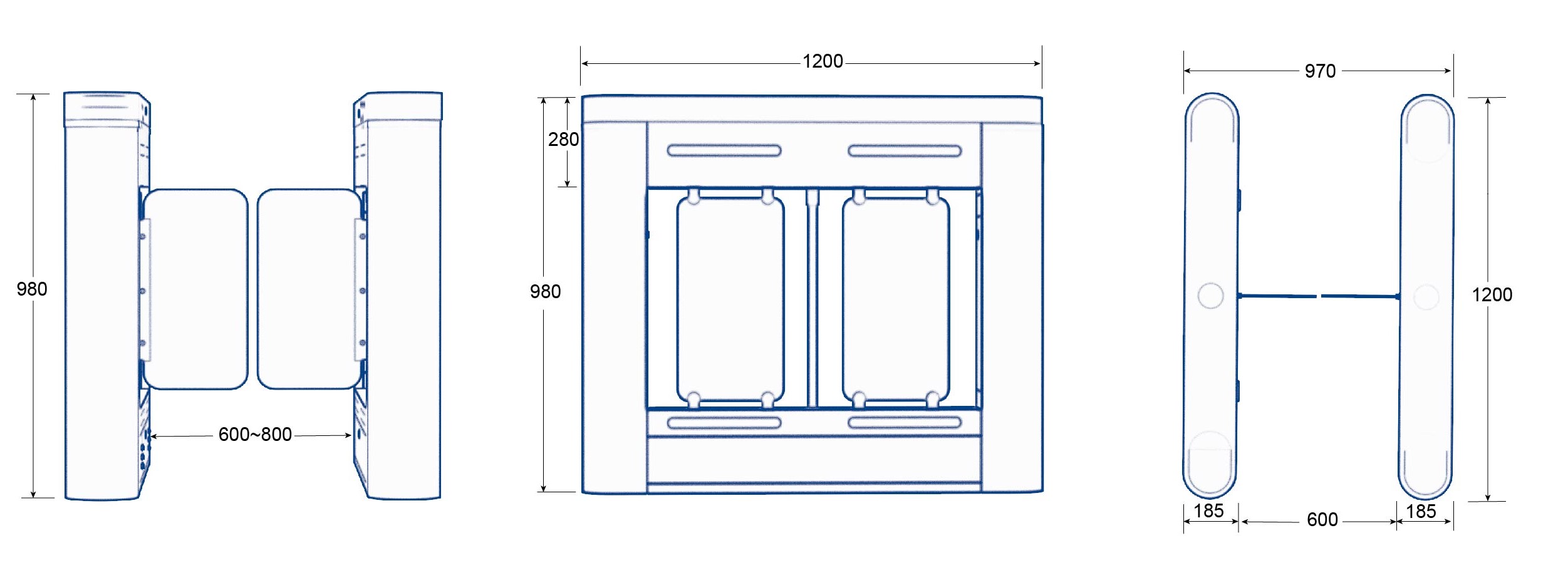

DIMENSIONS

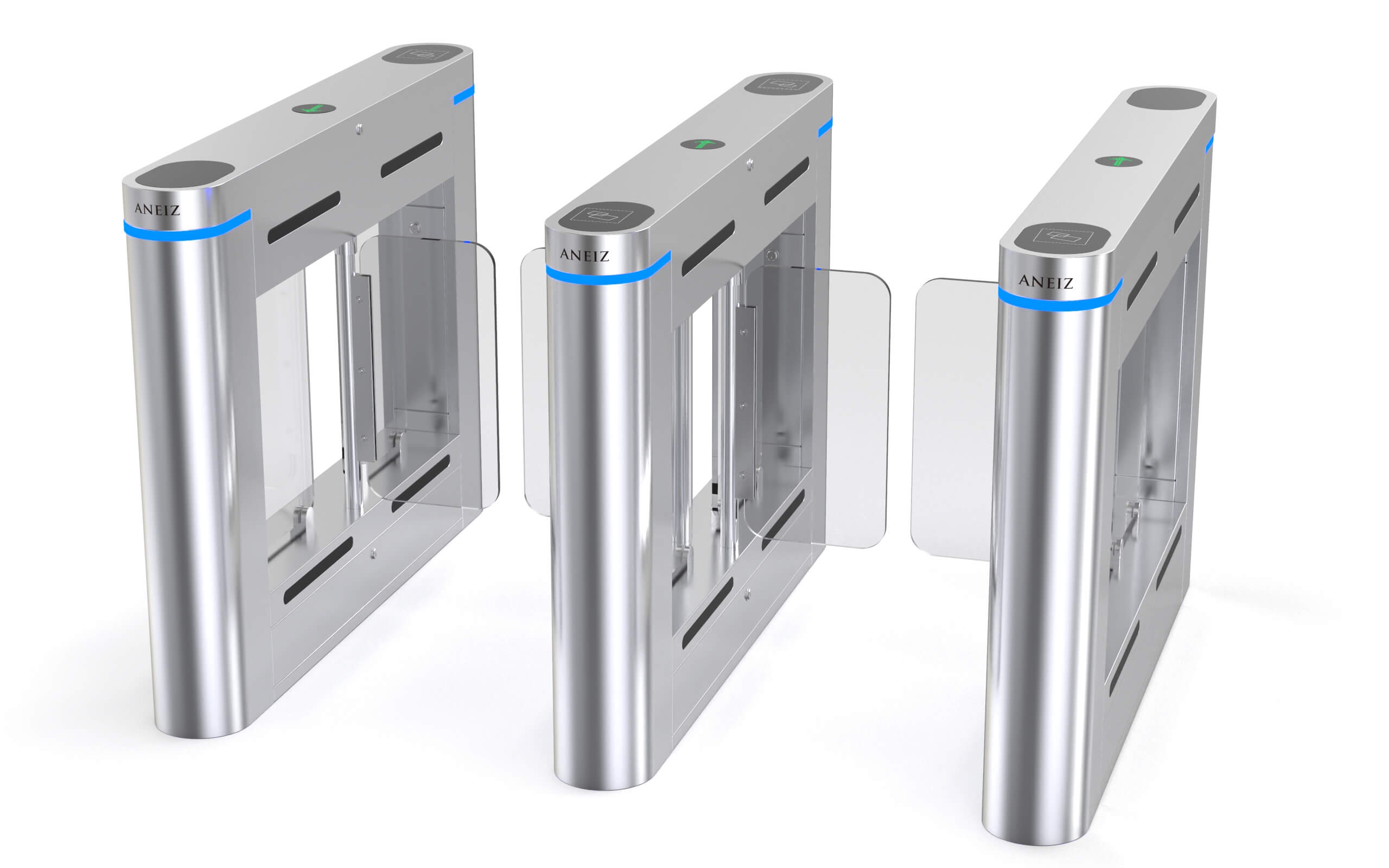

LANES
