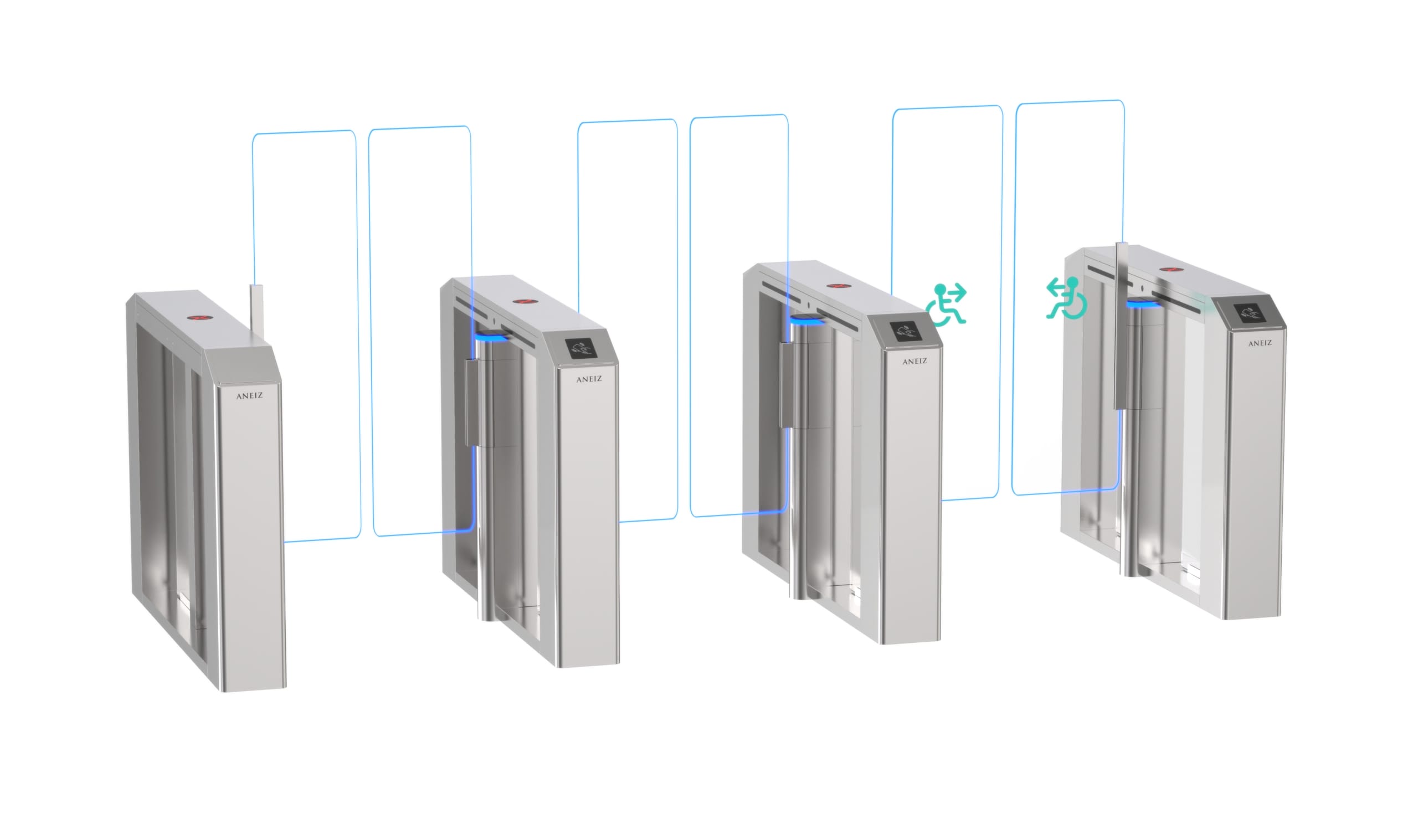

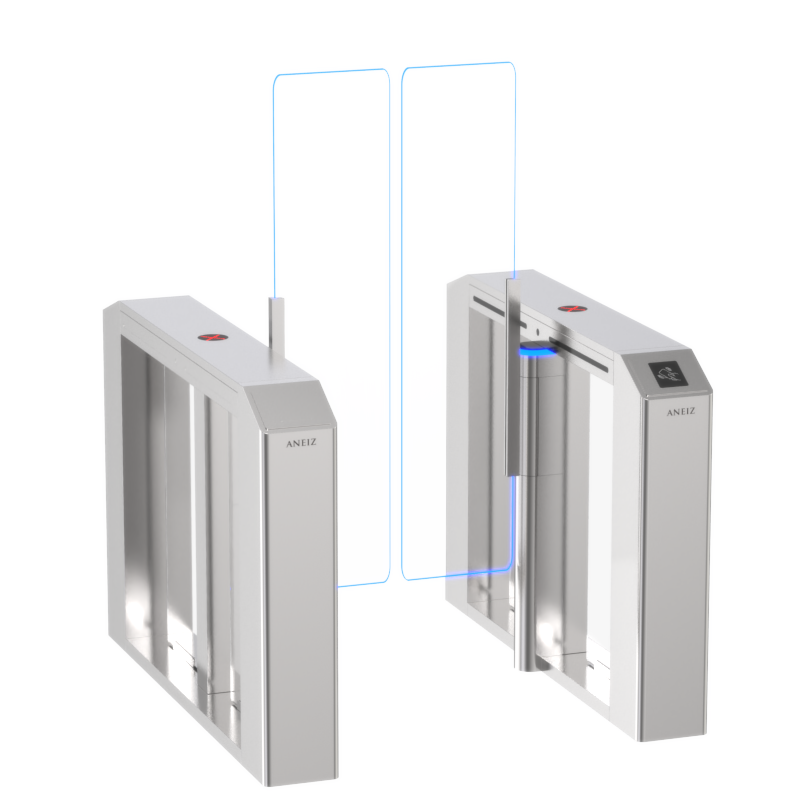

The G30H speed gate turnstile is with high glass arms to protect people from climbing over it, it is an ideal solution for places where need high security. The glass arm support 1200~1800mm height, and the lane support 600mm to 900mm. The whole body is made of 304 stainless steel material, strong and durable. The G30H features designed with standard relay signal, which can integrate easily to any kind of access control and fire systems through I/O (dry contact). In case of emergency, when power goes off both directions are free. Passing direction: uni-directional / bio-directional.
- MULTIPLE OPERATING MODES: IC/ID card, key fob, QR/bar code, face / fingerprint / finger vein biometric recognition, push button, ESD, wireless remote control, insert coins / card / wristband, digit counter…
- HIGH GLASS ARM: support 1200mm to 1800mm glass height to choose according to installation environment.
WIDE OPENING: compared to tripod turnstile, speed gate offers wider opening passageway 600mm-900mm to cater for bigger size pedestrian, wheelchair, luggage and big parcel to pass through easily.
EMERGENCY AND FIRE SAFETY: swing arms will automatically open during power failure. Speed gate also can be triggered to permanently open during emergency to facilitate fast evacuation. This is complying with fire safety requirements.
FAST USER THROUGHPUT: support the fastest 0.2sec opening time to support higher traffic rate that can effectively reduce long queue at entrance during peak hour. You can also lower the speed to cater for small children or old people.
FLEXIBLE SECURITY: the turnstile designed with consolidated and more durable mechanism, will not break even someone collide it, anti-collision and anti-kick function.
AUTO CLOSE TIMER: swing arms will close automatically if there is no pedestrian passing or passenger delay to entry.
ALARM DETECTION: IR sensors detect unauthorized or abnormal access. Alarm buzzer function will be triggered when the user is passing thru without authorization, tail gaiting, illegal intrusion or incorrect direction.
| Material | 304 Grade Stainless Steel |
| Arm Material | Plexiglas-transparency |

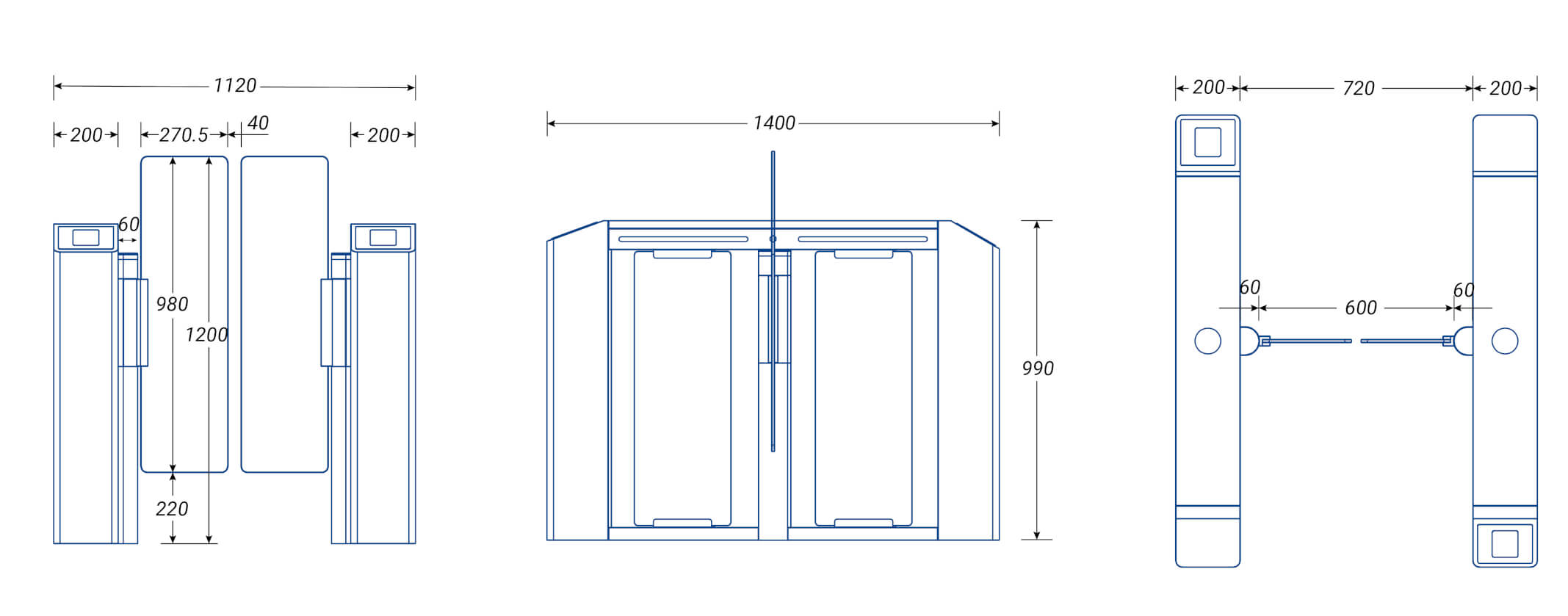

| Cabinet Dimension | 1400(L) X 200(W) X 990(H)mm |
| Arm Length | 550mm |
| Passage Width | 600mm standard lane, 900mm handicapped lane |
| Arm Height | 1200-1800mm |
| Throughput | 45 to 55 people per minute |
| Response Time | ≤0.2S |
| Net Weight | 80kg/pcs single core, 100kg/pcs double core |
| Directional Mode | Uni-directional or bio-directional |
| Emergency Function | Arm release automatically for Emergency access |
| IR Sensor | 6 pairs (standard) |
| Power Supply | AC220V/110V, 50/60Hz |
| Power Voltage | 24V DC |
| Power Consumption | 90-100W |
| MCBF | 15 Million |
| Operating Temperature | -20 °C – 75 °C |
| Operating Environment | Indoor or outdoor (need with shelter) |
| Relative Humidity | ≤ 90% |
| LED Indicators | Red cross means gate closed, green arrow means gate opened |
| Glass LED Strips (Optional) | Blue, green and red three colors |
| Warranty | 18 Months |
