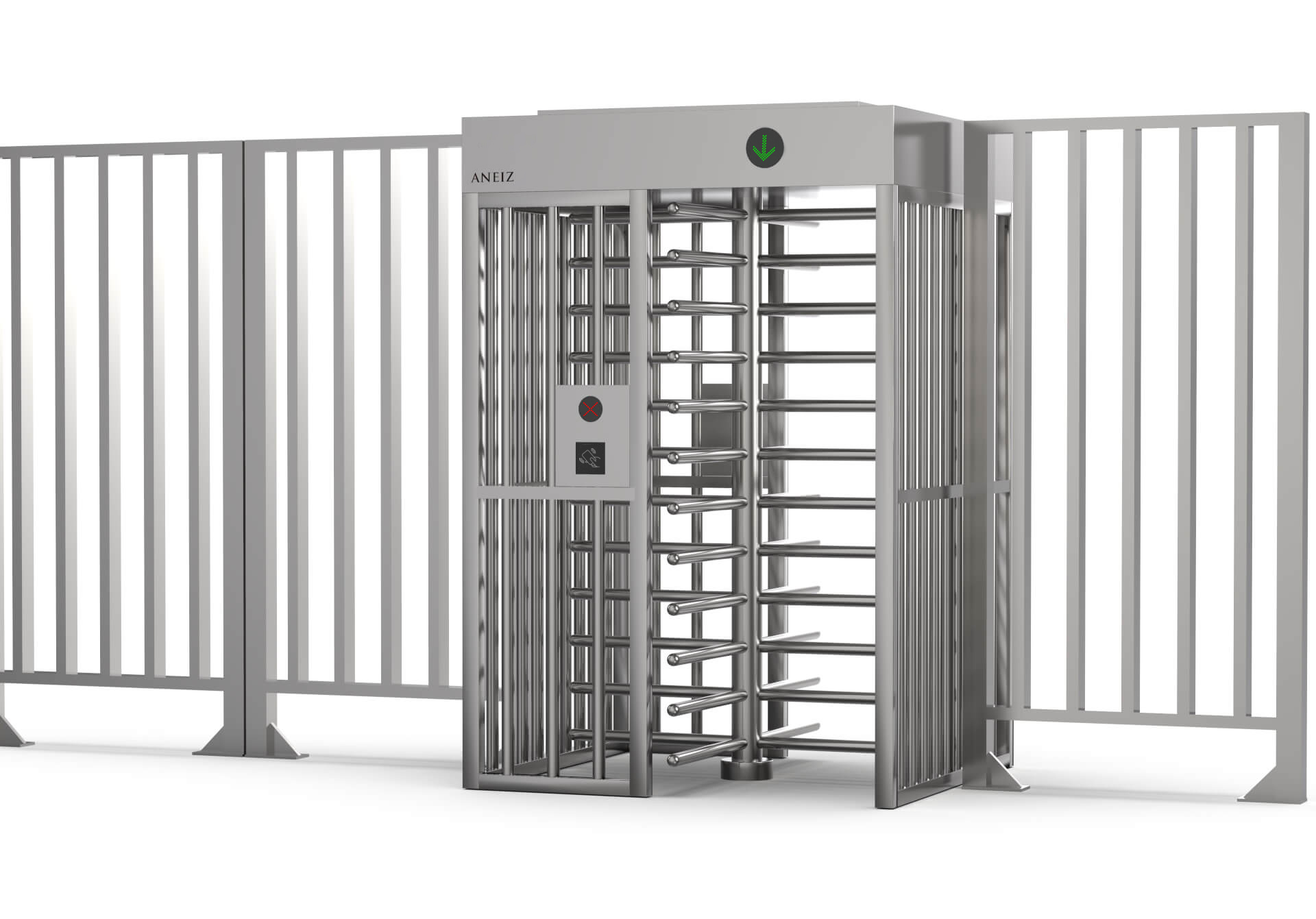

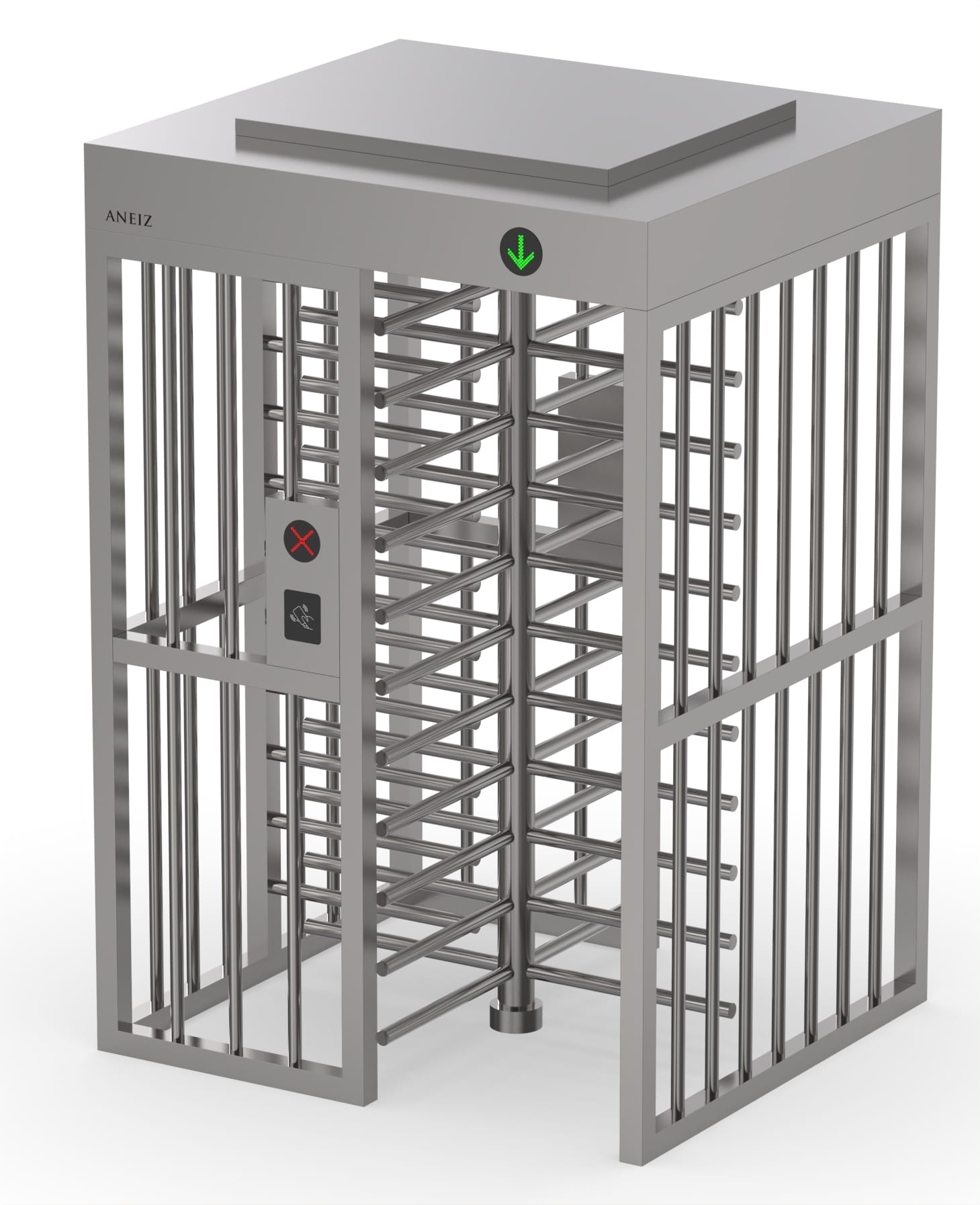

FHT10R is a single passage full height turnstile, with canopy roof construction and 304 stainless steel, ideal for installing at outdoor environment. This solid and high quality gates are usually use at places where need extreme high security and reliability, like jails, airports, stadiums, governments, private building, etc. The FHT10R features designed with standard relay signal, which can integrate easily to any kind of access control and fire systems through I/O (dry contact). Passing direction: uni-directional / bio-directional.

• Compatible with any access control systems, like IC/ID card, key fob, QR/bar code, face / fingerprint / finger vein biometric recognition, push button, ESD, wireless remote control, insert coins / card / wristband, digit counter…

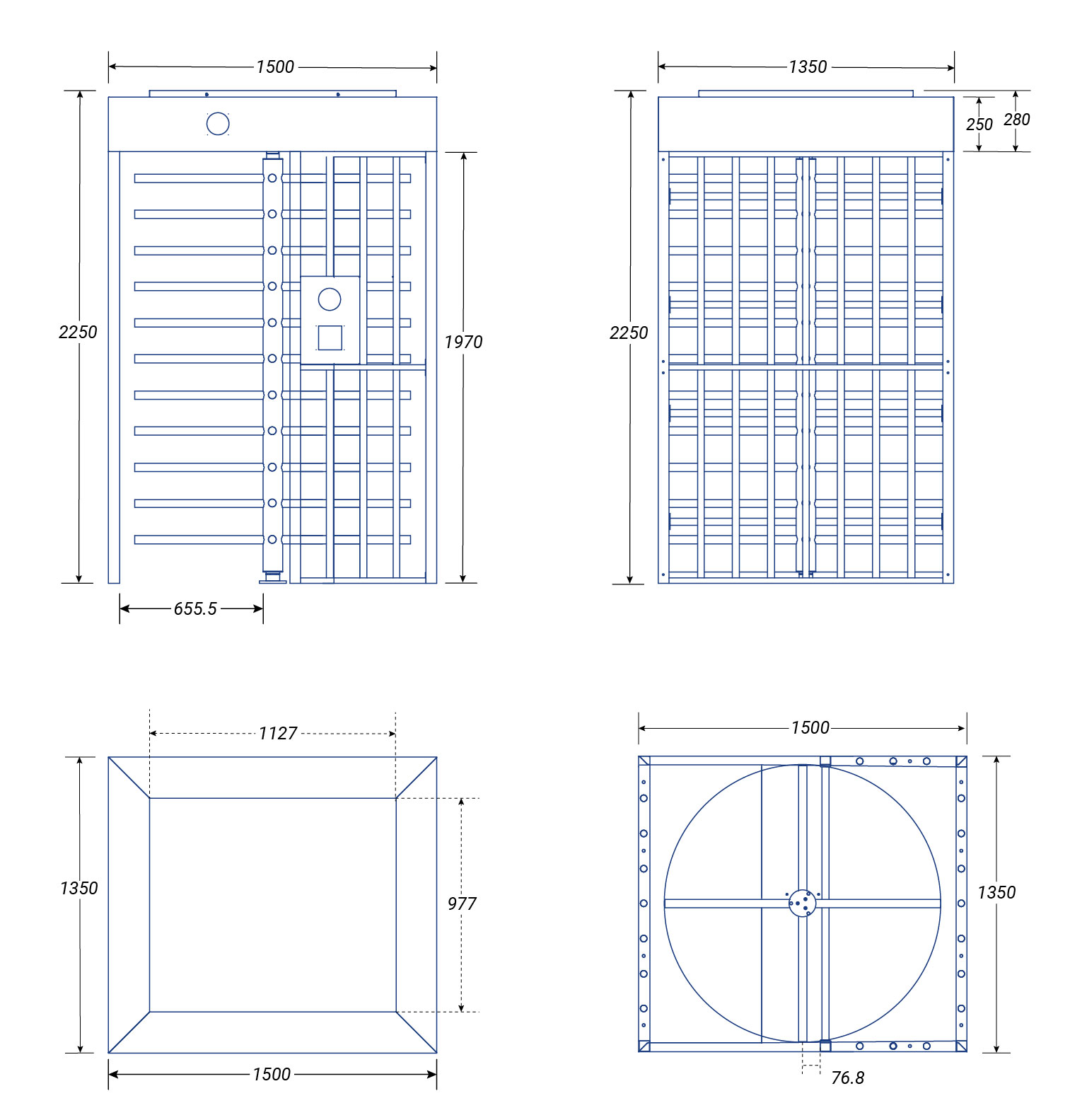

• With 2.2Mx1.5Mx2.2H bulk, full height turnstile is not able to crawl underneath and climb over to gain unauthorized access. Besides, the gate adopts high quality 304/306 stainless steel to replace ordinary steel.
• Solid canopy proof construction and 304 SS material, making the gate adapt to serve environment especially suffer rainstorm or under blazing sun when installed at outdoor.
• The transverse bars joint at the middle of both sides, making the whole frame more solid and stable.
• The locking mechanism prevents rotor from turning back, and only allows one person passing through at a time.
• Passing direction: single directional / bi-directional, both the two directions can be switched or set as free mode.
• LED indicators on the top and front display the status of passing, red cross means gate closed, green arrow means gate opened.
• Suitable for indoor and outdoor installation.

• In case of emergency, arm rotor will automatically release for free passage during power failure. This is complying with fire safety requirements.
