FEATURES

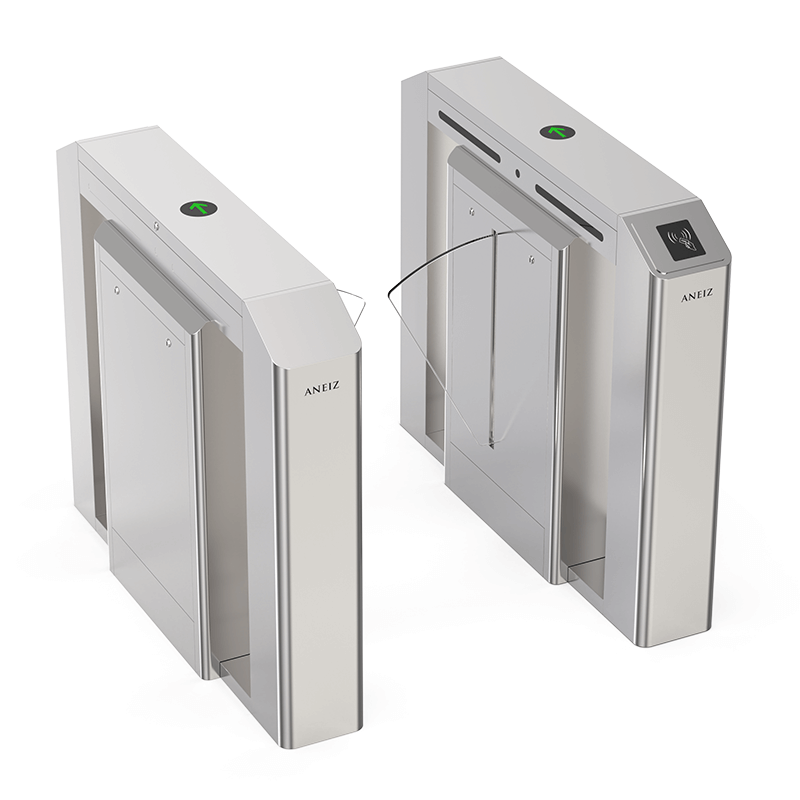

F30 optical flap turnstile is a high performance pedestrian control turnstile. Usually used in high pedestrian traffic flow in both directions to control pedestrian entry or exit in restricted areas. It can be easily integrated with any 3rd party system, such as RFID card, QR code, facial & fingerprint device. And is widely used for business building, stadium, gym, museum, apartment station, library and factory etc.
- LED indicator. Infrared sensor to prevent pinch pedestrians.
- 304 Stainless steel material, durable, high quality, for long lasting use.
- Brushless DC motor has long service life, and MCBF is up to 12 million times
- Rapid throughput, 40 to 45 people per minute.
- Passing direction: single directional / bi-directional, both the two directions can be switched or set as free mode.
- Can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
- In case of emergency, the optical turnstile arm will open automatically to allow free passage.
SPECIFICS
| Material | 304 Stainless Steel+ Plexiglas Arm |
| Dimension | 1200(L) X 280(W) X 1000(H)mm |
| Arm Length | 550mm |
| Passage Width | 600mm standard lane |
| Throughput | 40 to 45 people per minute |
| Infrared Sensor | 5 pairs(standard) |
| Net Weight | 65kg/pcs -85kg/pcs |
| Directional Mode | Uni-directional or bio-directional |
| Emergency Function | Automatic arm open when power off |
| Power Supply | AC220V/110V, 50/60Hz |
| Power Voltage | 24V DC |
| Power Consumption | 40W |
| MCBF | 12 Million |
| Operating Temperature | -20 °C – 75 °C |
| Operating Environment | Indoor or outdoor use |
| Relative Humidity | ≤ 95% |
| LED Indicators | Red cross means gate closed, green arrow means gate opened |
| Glass LED Strips (Optional) | Blue, green and red three colors |
| Warranty | 18 Months |

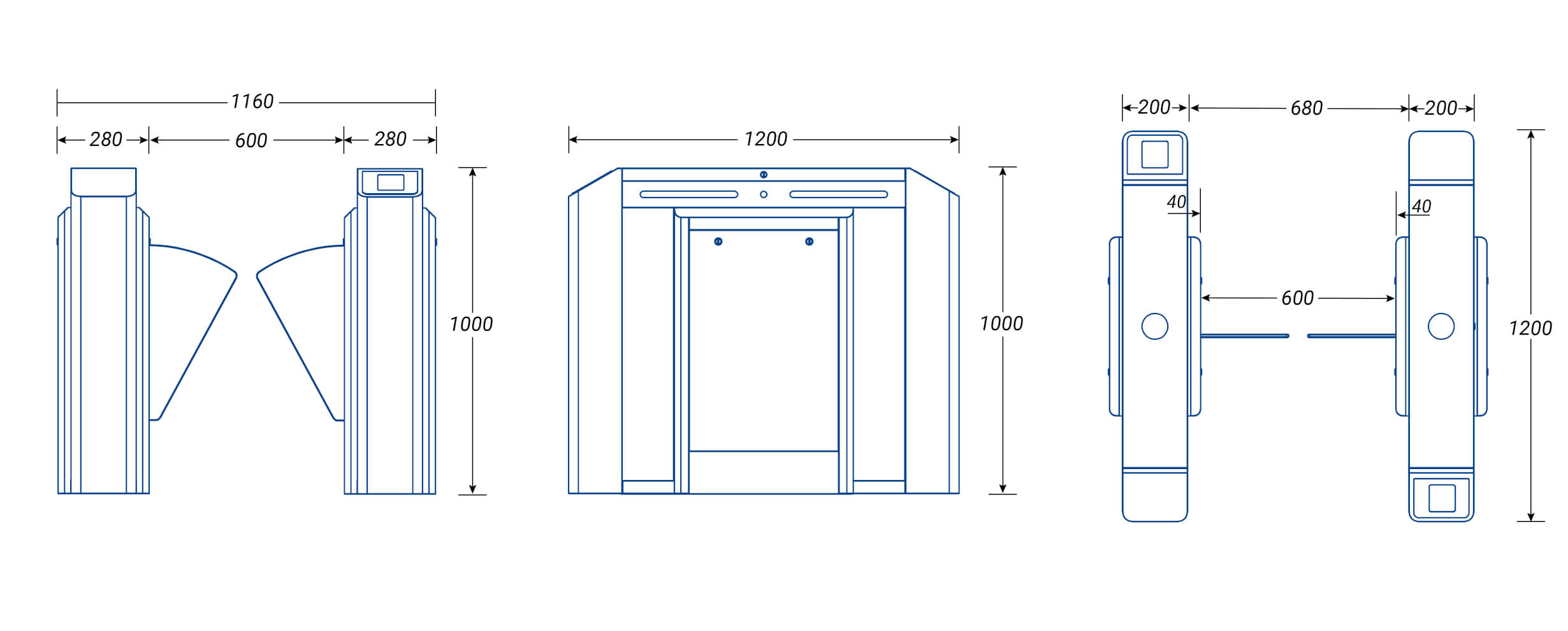

DIMENSIONS

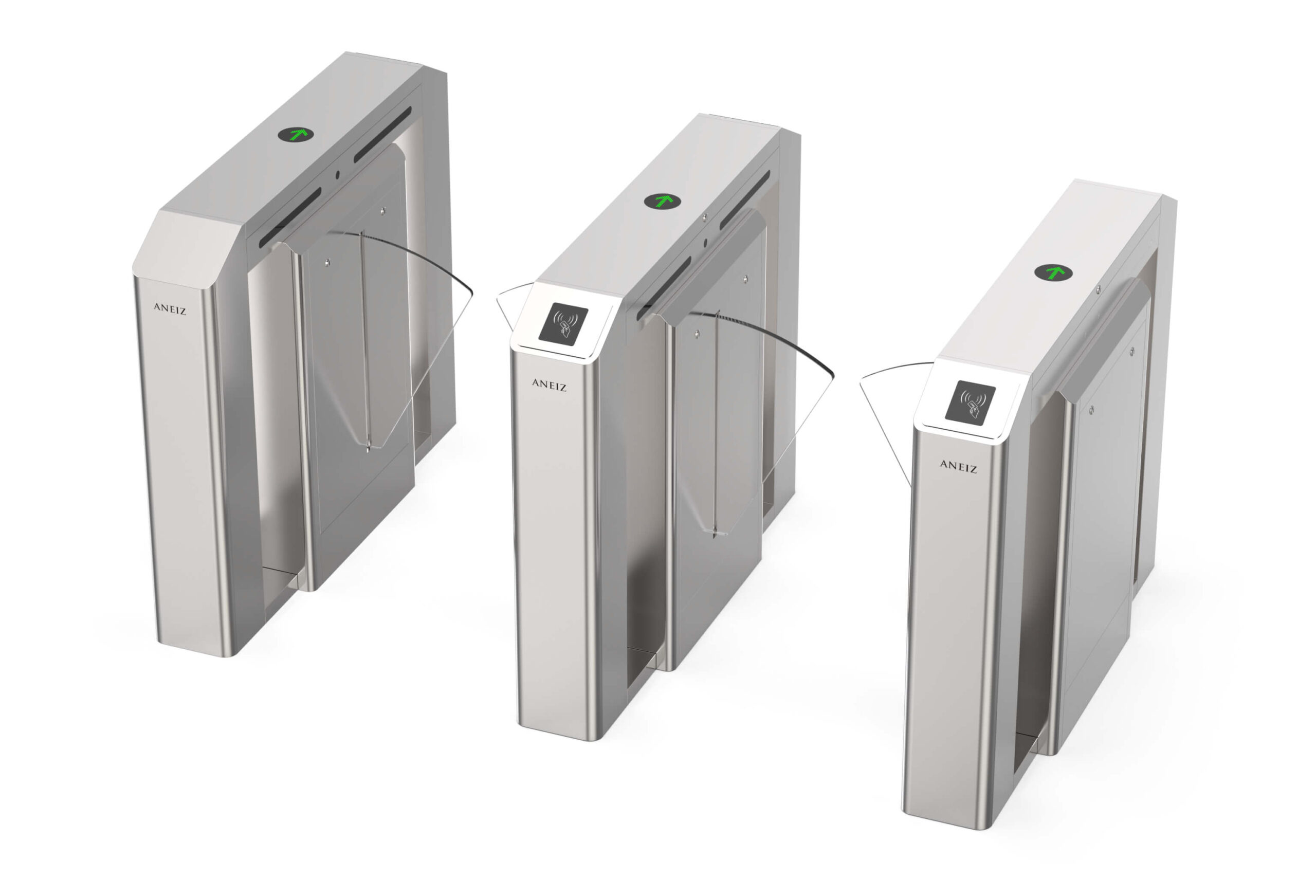

LANES
